DIY Table Saw Cart

Following up on fixing my table saw crosscut sled, I decided it was time to build a new cart for the saw. The mobile base kit I used from Harbor Freight seemed like a good idea and worked ok in the beginning. Over time, the weight of the saw seemed to bend the base. With only two small swivel castors and the other two wheels being stationary, it became a real bitch to move around the shop, especially as I filled out the space with more tools.

I took a lot of inspiration from the Mobile Table Saw Cart by Woodworking for Mere Mortals. This is actually what pushed me to create the jig for the pocket hole jig, since I’d be using it a lot in this build.

The solid wood came from the cabinets I rebuilt, the plywood (except the one 3/4 piece) is from a truckload I got for free, the drawer is the same as the ones I upcycled for the sanding station, and I think I paid $10 for the casters at a garage sale.

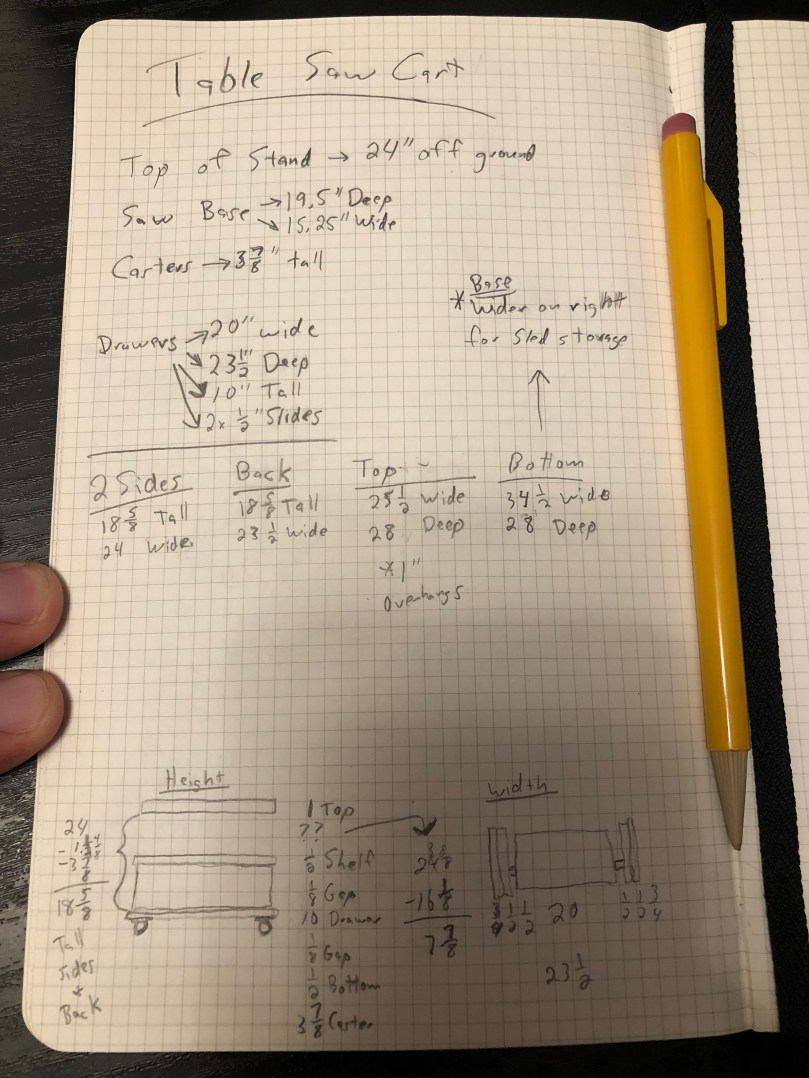

Here are some planning measurements and sketches. Other than trying to keep the same height for my saw, the dimensions were based on the drawer.

table-saw-drawings

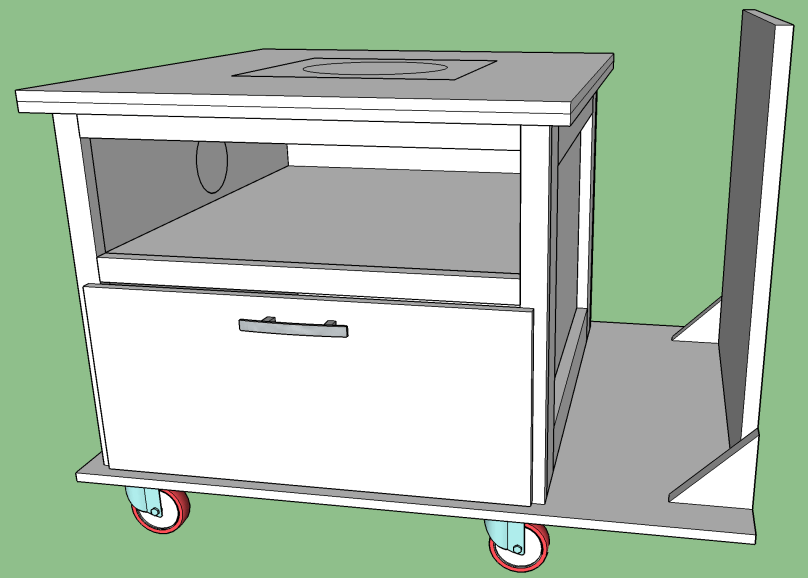

I took those and most of the plan from the mobile table saw cart I linked above to make a model in SketchUp. You can grab the plans off GitHub if you want them.

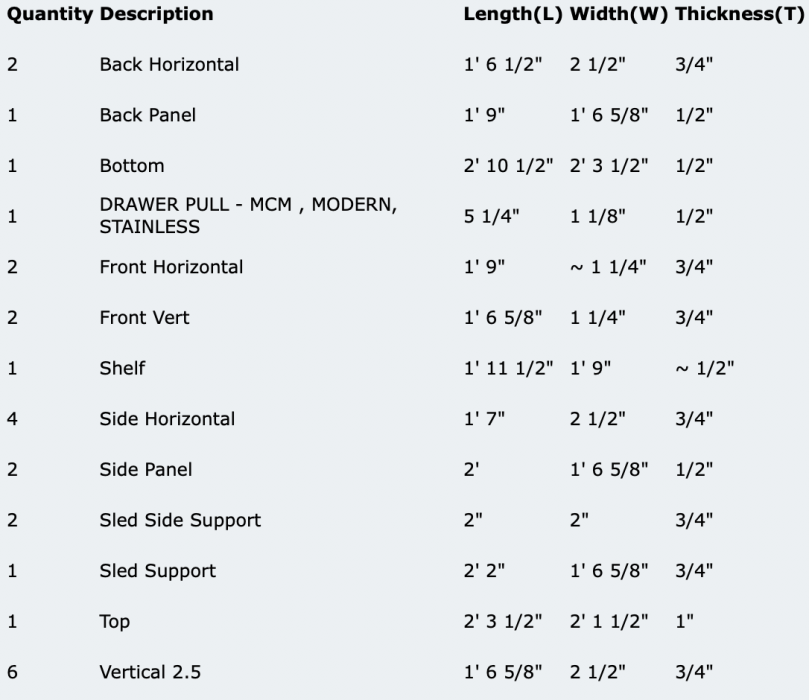

Creating a model really helps me find measurement errors and think about the assembly order. The Cut List extension in SketchUp is a huge time saver too.


Note that the cut list above isn’t the final one in case you want to make this. I made some modifications along the way. The Sketchup model should be pretty close to what I made though.

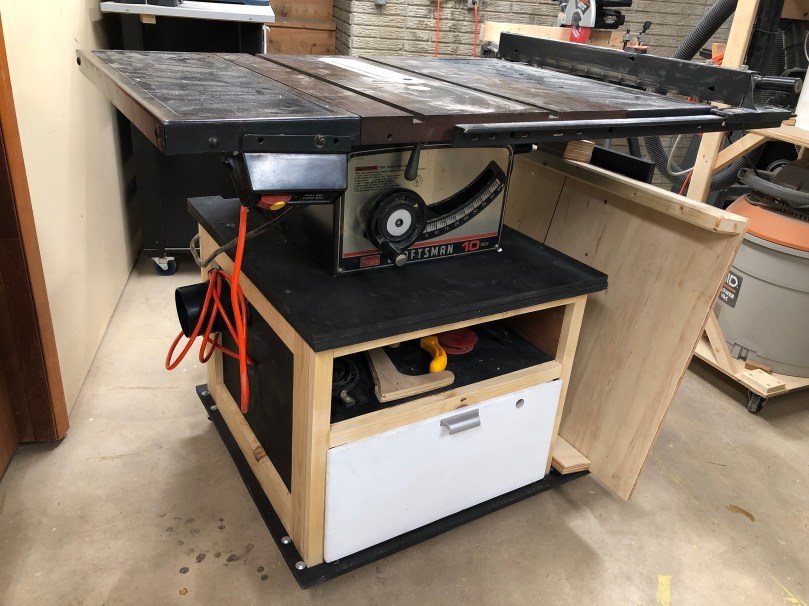

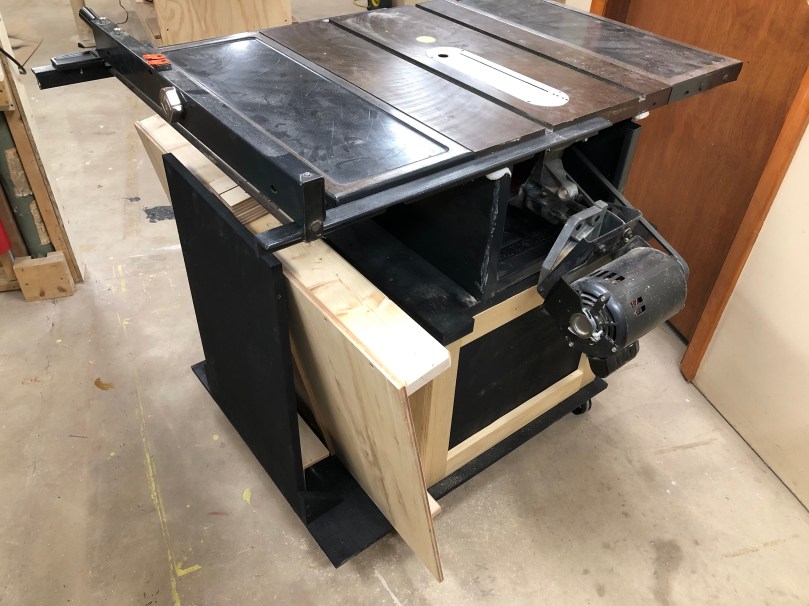

I really liked the assembly process for this build, which made it easy to square everything up. Makes a huge difference being able to move the saw around the shop better.

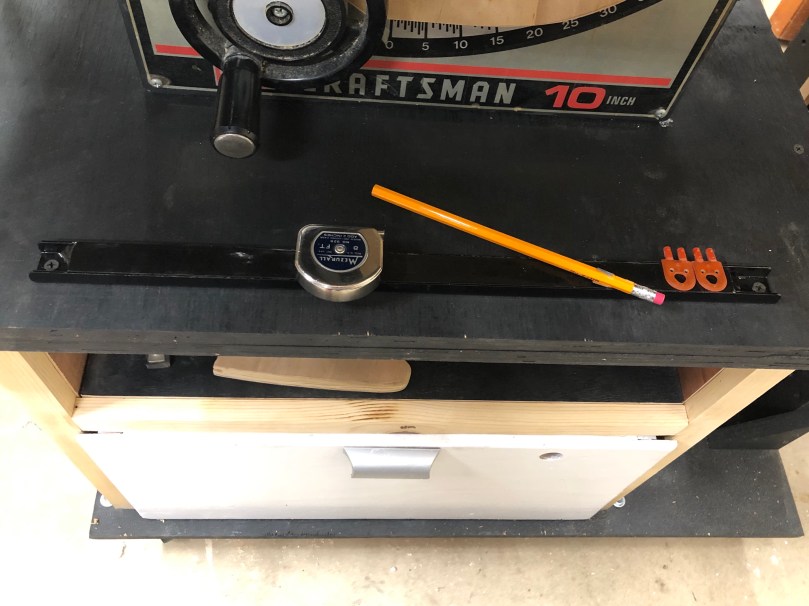

Of course I had to add one of the free Harbor Freight magnetic strips. Much better plate to store the tape measure and splitters than with magnets on the fence.

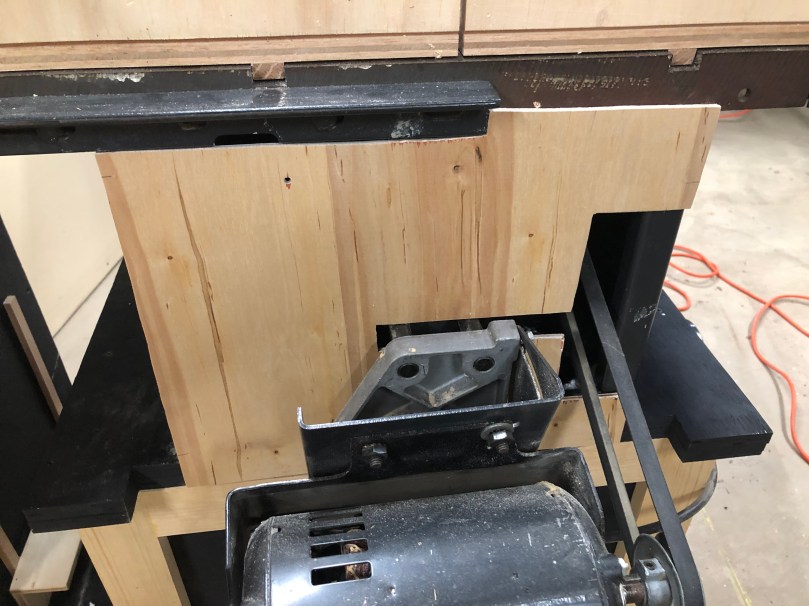

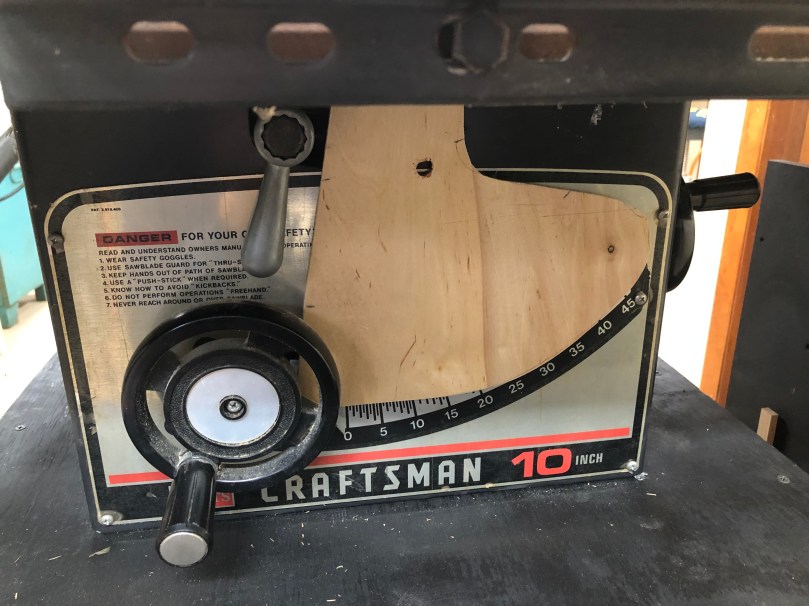

While I was at it, I attempted to seal up a bunch of gaps in the saw’s body with spray foam. What a mess! I also made covers for the front and back that’ll stay in place except when I need to make a bevel cut.

I ended painting them black to blend in. Hopefully these little things make a big difference with dust collection.
