Weight Plate Storage

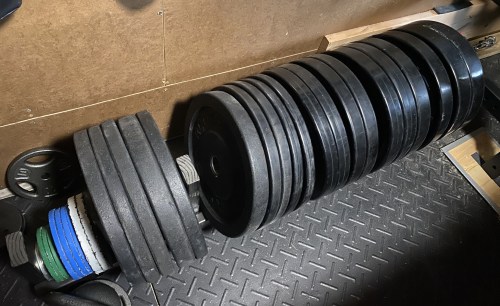

I made a weight plate rack probably 7 years ago and it held up reasonably well with limited use.

Through the pandemic, I’ve been using my garage gym a lot and the rack was starting to fall apart. The design had two main problems:

  1. The screws (I didn’t know about wood glue back then) couldn’t support the load of plates leaning and falling against the uprights.
  2. The narrow base meant the plates could easily roll off when bumped.

So I took a bunch of measurements, looked at my scrap plywood, and modeled a new rack in SketchUp. My goals were to make construction simple, not spend any money, add spots for the kettlebell plates, and save space. Here’s what I came up with.

Originally it was one wide rack, but I ended up making it in two sections since my scrap plywood wasn’t long enough. This made assembly easier and gives me the option of storing half of the plates in a different location.

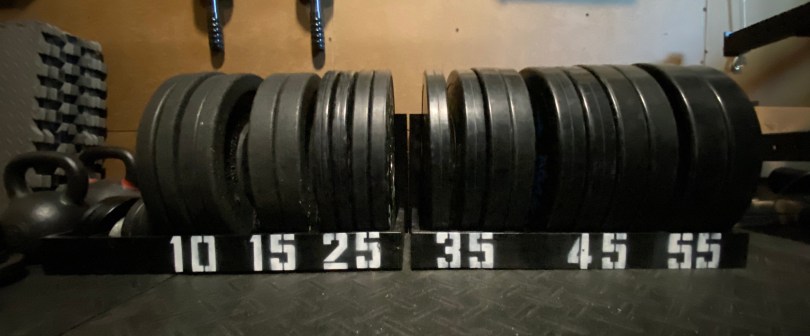

I cut all of the plywood, used wood glue and a nail gun for assembly, and sanded all of the edges. I gave it some spray paint and number stencils. I had everything I needed in my workshop so I didn’t spend a dime.

I tested with the heavier plates and quickly realized I’d failed to plan for the plates tipping to the sides; they don’t stay upright without some kind of vertical support. Also with the lightweight plywood construction, the whole thing could move depending on how many other plates are in use. Back to the drawing board. I didn’t want to throw away all my work, so I came up with a way to use 2x4s from the previous rack.

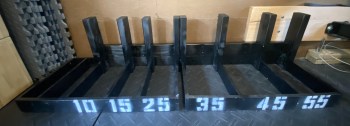

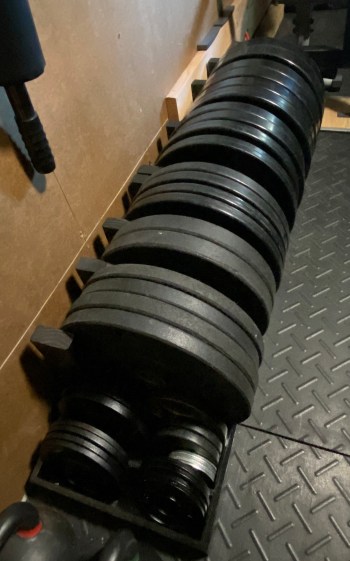

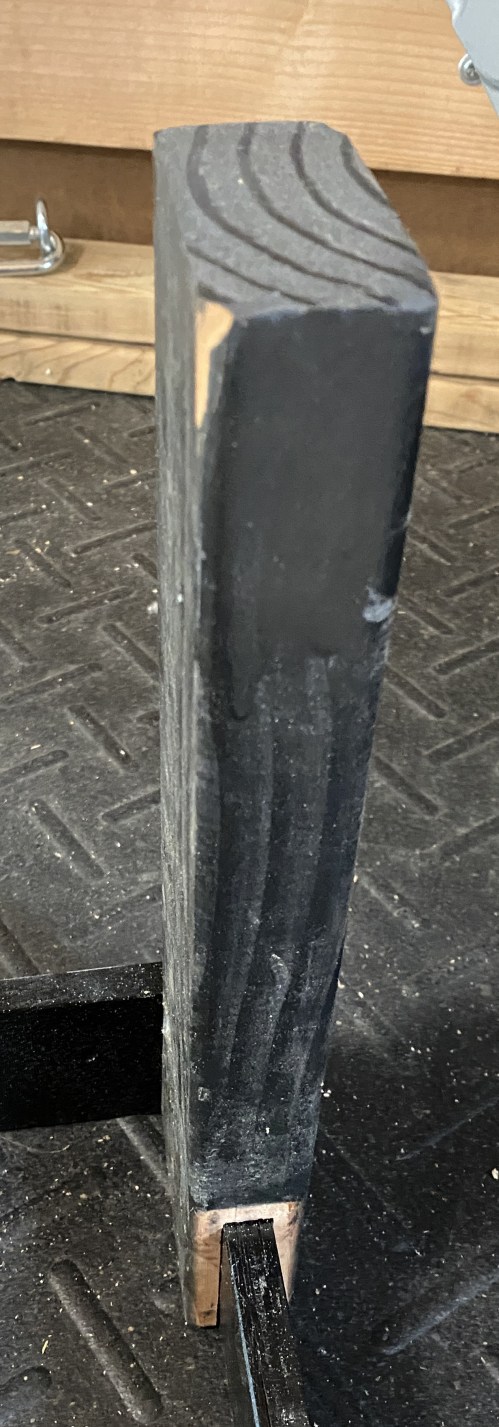

I cut slots in the 2×4 to create stable vertical supports. I only needed a single screw in each one. Then I added another piece of 2×4 across the back, double screwed to each support, to link all four together, which improved the strength a lot. Each half rack was also screwed to the wall. It works well now.

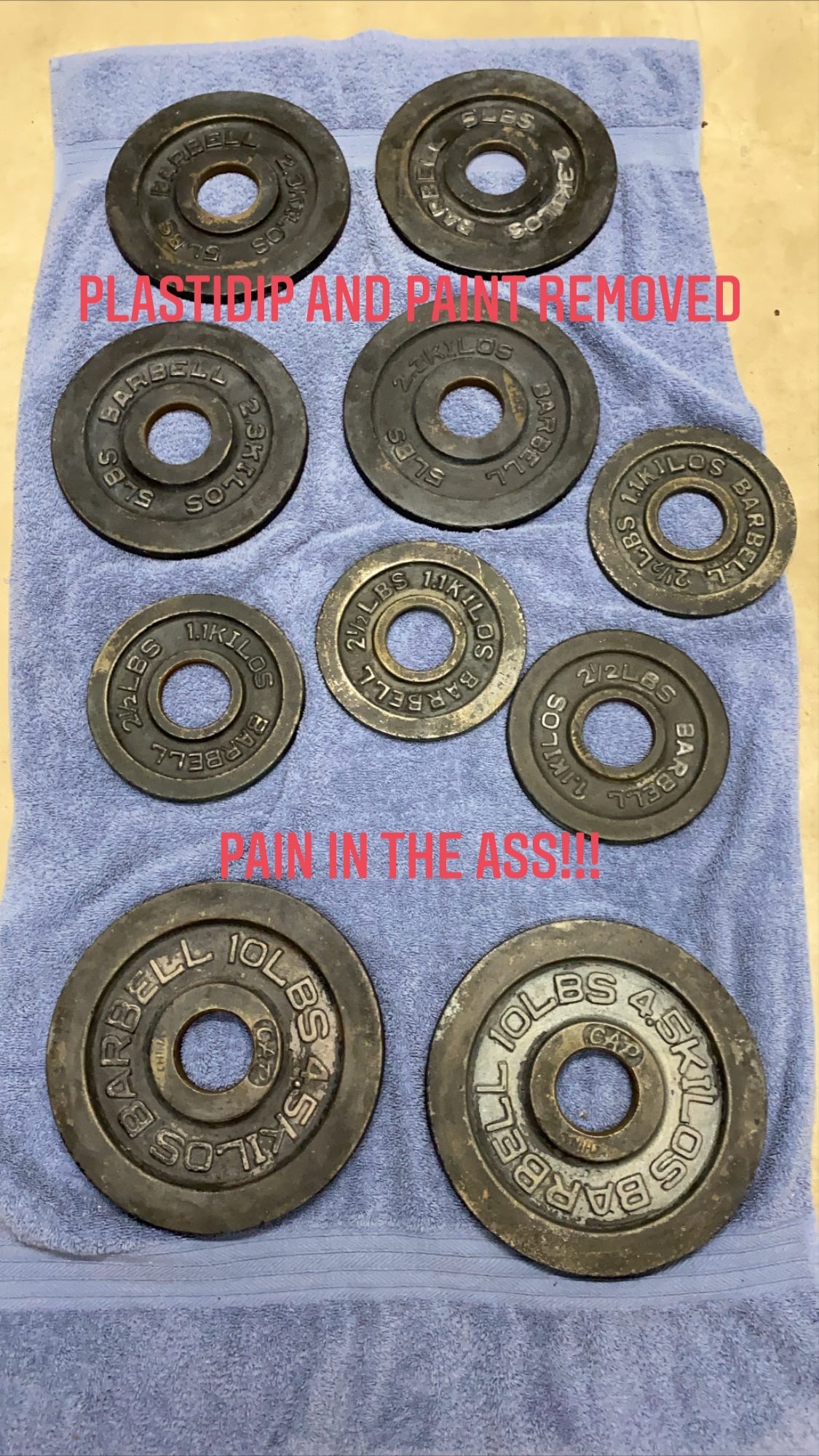

While I was at it, I removed the Plasti Dip and colored paint from the small metal plates, which had been peeling for years. Blakleen was a huge save in this process, even though it was still a mess and a lot of work. Then I primed and painted them black. They look really good, so it was worth it.
