New Table Saw Switch

Now that I’ve been in my workshop again, it’s time for some table saw upgrades I’ve been wanting to do. The bigger project I had planned for yesterday couldn’t happen because of part damaged during shipping, so I went with the easy one. Here’s the old switch on my saw.

It worked fine, but I wanted something cooler and safer, so I ordered one from Amazon for about $13. The hardest part was finding an electrical box to would work with the location where I wanted to install the switch. Then I built a simple scrap wood box around it and wired everything.

The START button is recessed and you really have to push it, so there is almost no chance of accidentally turning on the saw. The STOP paddle is a big target and at knee height, which will make it easy to turn off the saw without moving my eyes or hands if an operation becomes dangerous.

Middle Seat Belt

I questioned if I should get a seat belt for the middle of my 1968 Chevrolet C10 truck. I decided to go ahead and get it since it was only $30.

I may tuck it completely behind the seat so it’ll be out-of-the-way. It’ll only take a minute to feed it up through the seat if I ever need it.

Upgrading a Used Table Saw – Part 3

Following up on part 2 of upgrading the used Craftsman table saw (model 113.298032).

I found a couple of push blocks for $1/each at an estate sale. These will probably come in handy more for a router table when I build one and if I ever get a jointer.

After organizing all of my hand tools, I had floor space back and was able to spend some time building this weekend. I made a cross-cut sled, following most of the instructions from a build by The Wood Whisperer.


Since I had extra pieces of the oak runners already cut to size I made a mini sled too.

The sleds will make it easier and safer to use the saw. I already used the large sled to cut the pieces for the mini sled and then during the mini build I used it to cut the block that covers the blade when it goes through the back. Really handy accessories!

I gave a good coat of paste finishing wax to the table saw surface, miter slots, fence, rails, and the bottom of both sleds. Everything slides really well now.

I didn’t like how sketchy it was cutting the long thin runners, so I moved this push stick up in priority on my project list so I’ll have it the next time I need it. Figured I might as well make two because they’ll get chewed up over time.

Made some adjustments to the side storage to put the push sticks in each reach at the front.

Added a platform underneath and felt dumb pretty dumb doing it. At first I cut a sized piece before realizing there is no way to get it in there without removing the saw from the rolling base, which I definitely was not going to do. I ended up ripping the piece in half and screwing in a couple of supports down the middle to connect the two sides. I may store my circular and jig saws here too.

Upgrading a Used Table Saw – Part 2

I’ve done a lot more to my used Craftsman table saw (model 113.298032) since the upgrades in part 1 of this series.

To go along with building my dust separator, I needed a way to connect it to the table saw. I used a dust hood ($8), 4″ hose ($20, with plenty extra for future uses), hose clamps (2x $1.29), 4 in.- 2 1/4 in. adapter ($1.78), and some scrap wood.

While I was grabbing parts from Menard’s I grabbed a push stick (yellow-orange in picture below) for $2. Eventually I’ll make one or two other versions on my own to use with different cuts or sizes of wood. Since I had to add the insert on a side for the dust hose, I add some places to hook stuff. I’ll probably add something similar to the other side of the stand and maybe put in a bottom for more storage space.

I grabbed a nice Diablo 60 tooth blade ($34) from Amazon, a zero clearance insert ($34), and a splitter kit ($35). After installing the blade, I tuned up all of the alignments on the saw following tips from parts 1 and 2 of a YouTube guide. Once everything was aligned properly I was able to install the insert and splitter. The combo will help prevent tearout, not give space for pieces of wood to fall down into the saw, and help prevent kickback since this old saw doesn’t allow a riving knife. You can never be too safe on these machines.

In part 1, I mentioned fence customizations. The plan there was mainly based on reviews I read about this saw before buying it. Many people said the fence was junk. After aligning everything, making sure to move the fence from the T end (not the end by the blade), and using the saw for a bit, I think it’ll work just fine for me.

At an estate sale I found a miter gauge that actually fits my slots. I bought a digital angle gauge ($15), which not only helps to make sure the blade is aligned properly with the table, but will allow accuracy when setting angled cuts.

Check out part 3.

The Beep Goes On

While vacationing at a cottage on Long Lake, a faint beeping sound started. We could barely hear it, so it wasn’t a big deal. We figured it would go away. After a day or so, it got progressively faster, louder, and beepier.

Several times over the next day, we searched for the source of the annoying beeps. If you can picture a family tearing apart a cottage, that was us. We looked behind everything attached to a wall and searched through every drawer and cupboard.

As the beeps got louder we finally narrowed down a direction. The source was somewhere under the floor. I walked around the place in the morning looking for a crawl space entrance. No such luck. After a quick call to Dad I learned about a crawl space door hidden under a rug.

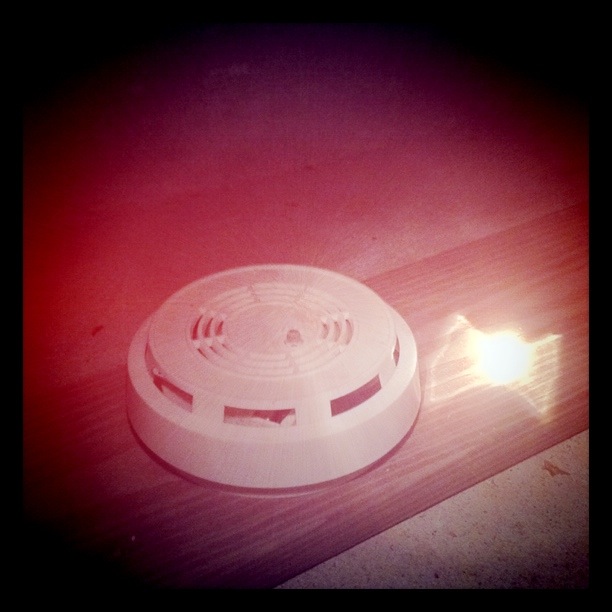

With a flashlight in hand, I pulled on my shoes and descending the stairs. Two steps later I found a smoke alarm with a dying battery. No more fucking beeps!
