Aluminum Branding Iron

If you watched the video about the bandsaw box, you may have noticed that I burned my initials in to the bottom of the box. I got the idea to leave my “stamp” on anything I make out of wood and of course a branding iron is the natural choice.

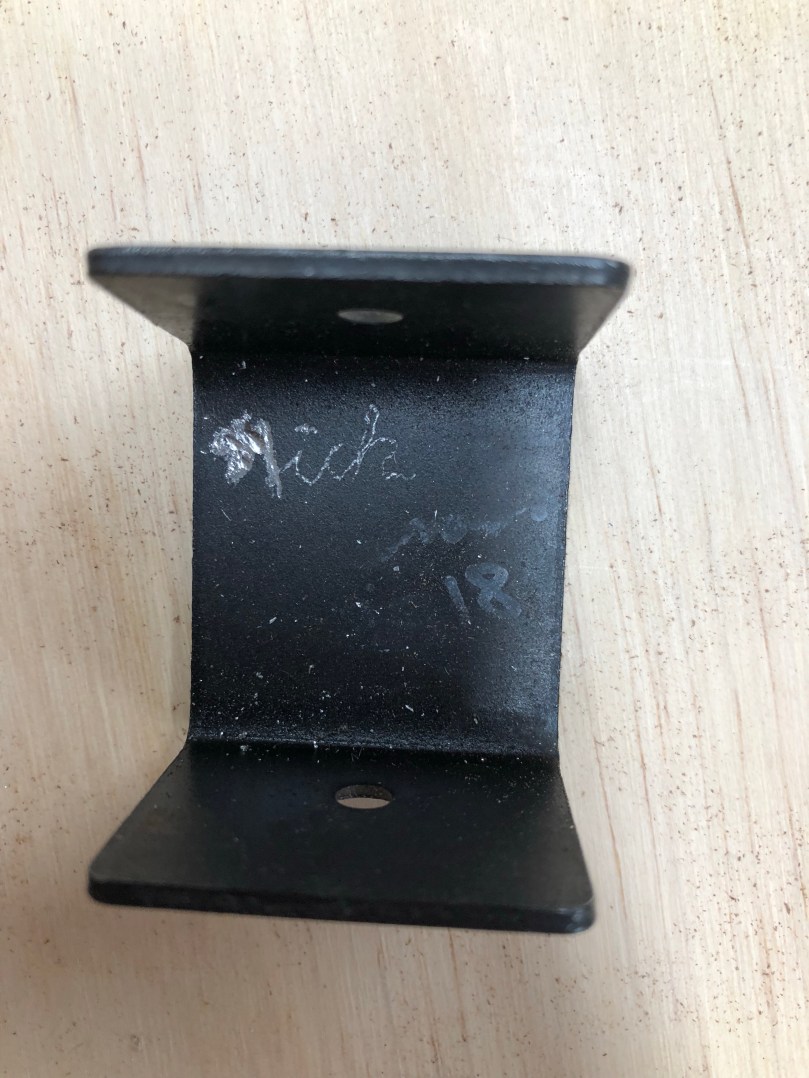

I’d set aside an old metal bracket with the original idea of writing my name and the year and then carving it in with a Dremel.

I quickly realized it was going to take forever with such hard metal, especially with so much detail. So I shifted gears with the plans of making a simple one with my initials and 18 for the year.

I stopped at Menards hoping to find some solid brass or aluminum. In the welding section the thickest piece of aluminum they had was a half-inch square in 3 foot long pieces. I grabbed one for about $12.

It was hard to write out the 4 characters (NM & 18) in such a small space, but I gave it a try.


I screwed up when I chopped off 1/4 of the 8; it was just too small of an area for so many details. So I cut that chunk off and started over with just NM.

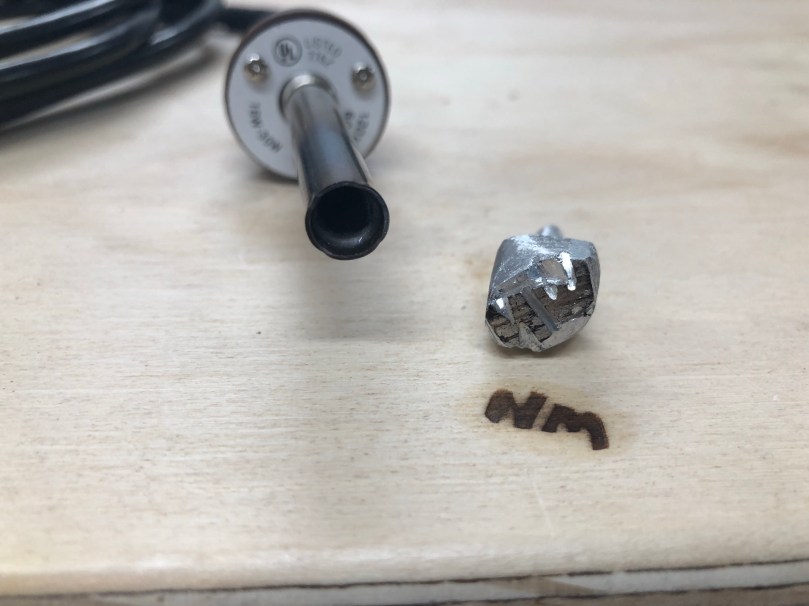

Turned out pretty good and it was easy without the letters having any round edges or inside spaces.

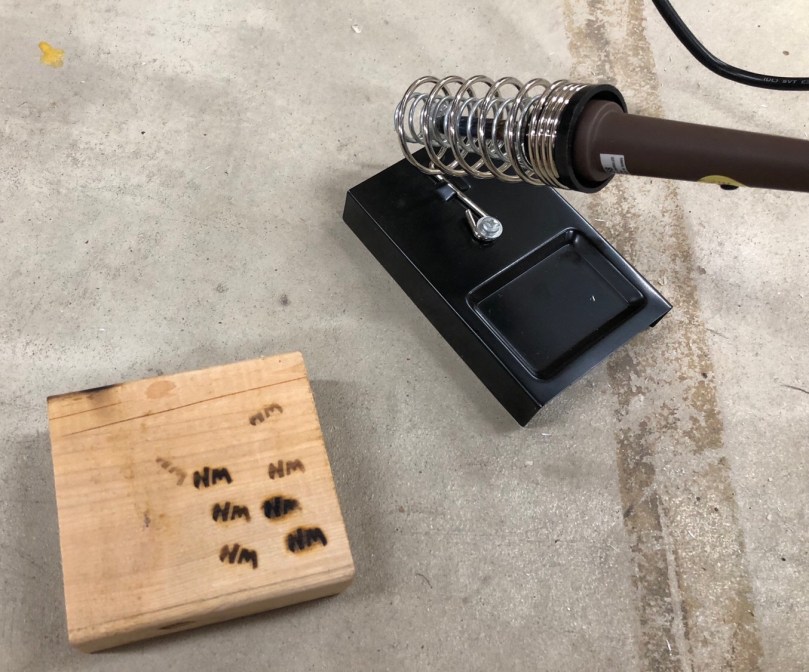

I found out heating with a blow torch sucks and got the idea to use my old soldering iron as the heating element. I had to do a ton of filing to get the stem down to size, but it snugly fits into the soldering iron, which is nice so I didn’t have to drill a hole for a bolt or set screw of some kind and I can still use this as a soldering iron as intended if I need to.

Instead of a branding iron should this be called a branding aluminum?
