Tinkering with a Bathroom Fan and Heater

I’ve been busy with travel, the truck, and summer, so I haven’t posted any projects or videos lately. Several weeks ago I did mess around with a bathroom fan and heater. Here are some pieces of random video from that process.

Fixing a Simple Button & LED Circuit

I found an old Christmas ornament which was supposed to light up by pressing a button. Before trashing the ornament, I tore out the circuit. While I was taking it apart and figuring out why it didn’t work, I turned on the camera and talked to myself. Probably boring for most people, but it might be interesting to see what I was thinking through the process. If you’re new to electronics (like me) it may even teach you a few things.

This is completely raw and unedited footage. Sorry about the noise in the background. I was using an electric heater because my boiler wasn’t heating up the house properly.

Negative Voltage

The girls were having some problems with the LEDs in a couple of stuffed bears. Mom thought there might be a short in the wiring because they’d work for 10-15 seconds and then the LED sequence would freeze up or turn off. Before tearing into the bears I got out my multimeter (has become quite the handy dandy tool for me) and tested the batteries, which had been straight out of a package when they were used in the bears.

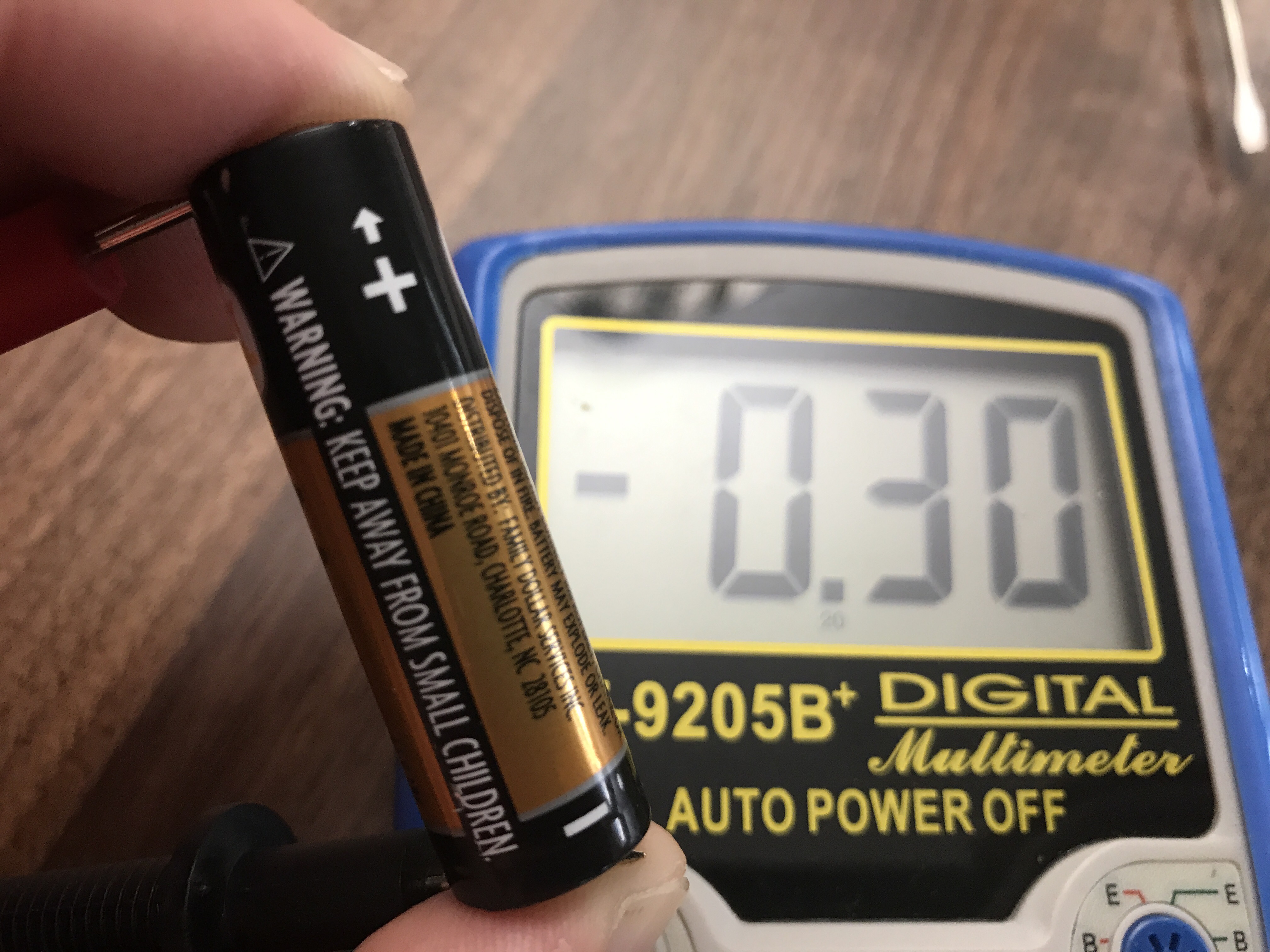

Two of the AA batteries were reading right around the expected 1.5v, but the other was -0.3v, as shown above. I’ve never seen that before, so I did some Googling.

Any type of battery can and will begin to charge a dead cell in reverse if you keep trying to draw current out of it. Remember, a battery is a series connection of cells, so in any pack regardless of chemistry, a dead cell once depleted is going to be subjected to voltage reversal.
– Source

It looks like something happened to reverse the polarity during manufacturing or the battery was DOA and got charged in reverse from the other two AAs.

After replacing the batteries all of the bears work again. It’s a good reminder to check your power source when things don’t work.
